产品中心

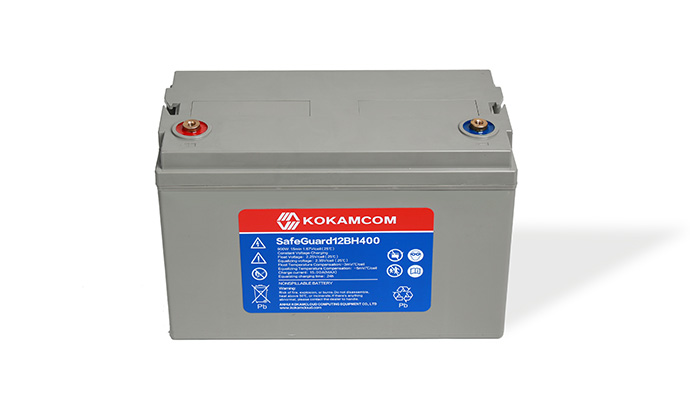

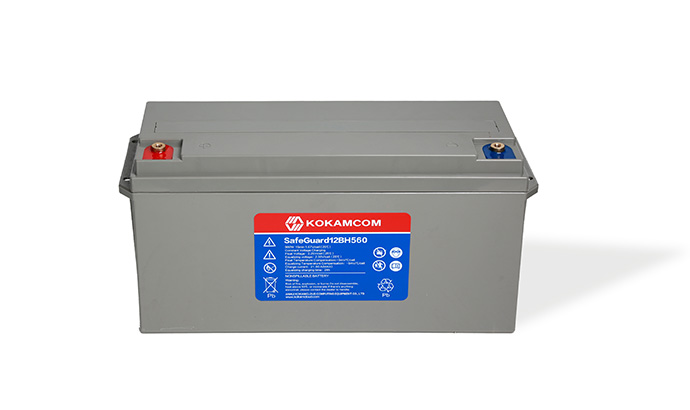

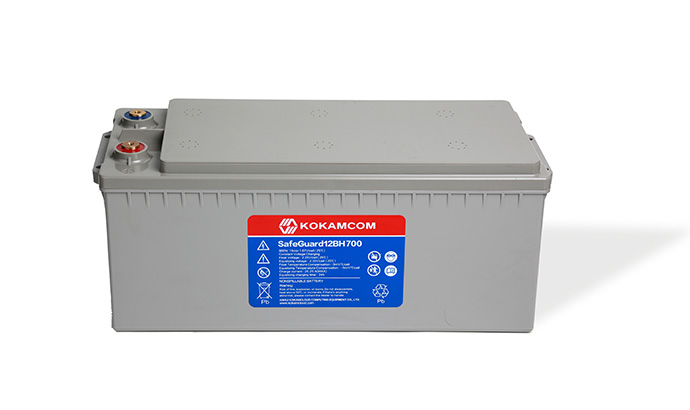

BH series

Products Features:
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field:
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

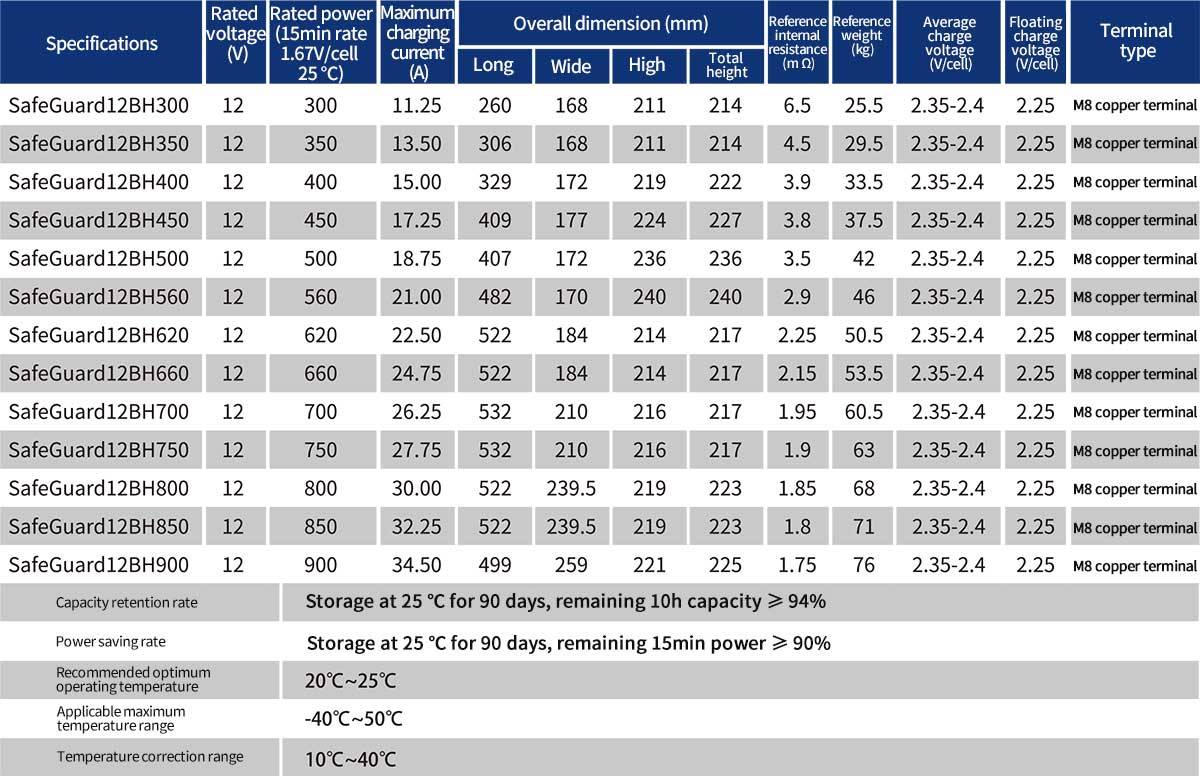

PRODUCT TECHNICAL PARAMETER TABLE

Product technical parameters table

BATTERY CHARACTERISTIC CURVE

Constant power discharge curve (25 ℃, termination voltage 10.5V)

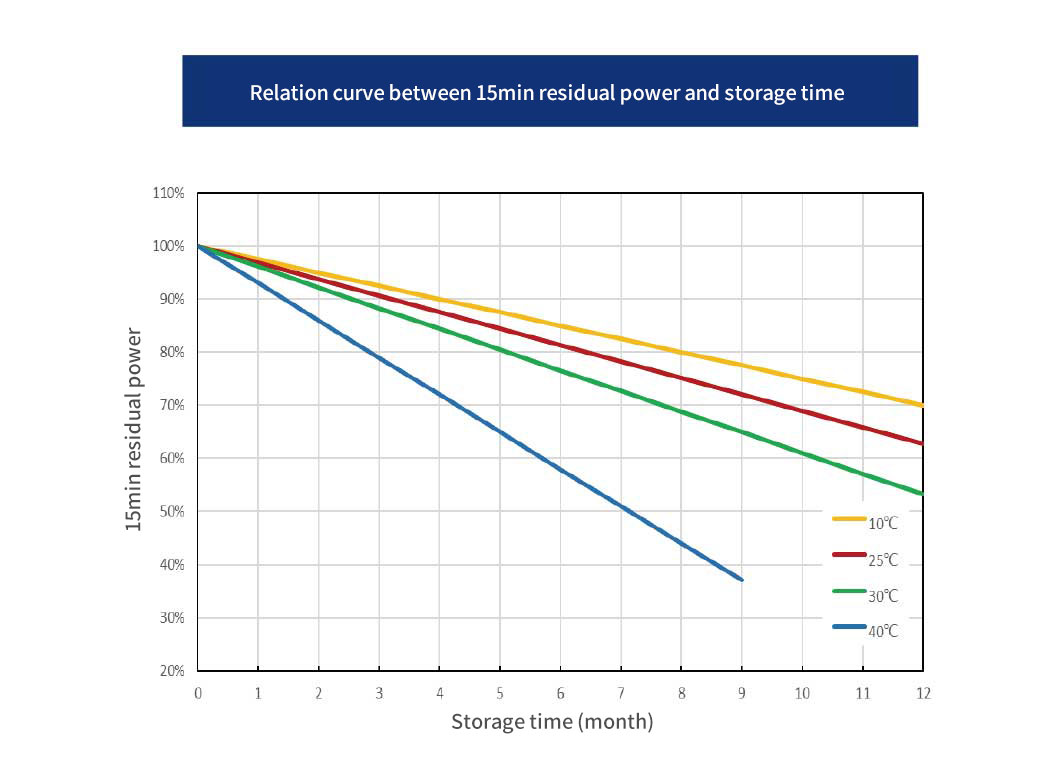

Relation curve between 15min residual power and storage time
Relation curve between charging voltage and ambient temperature

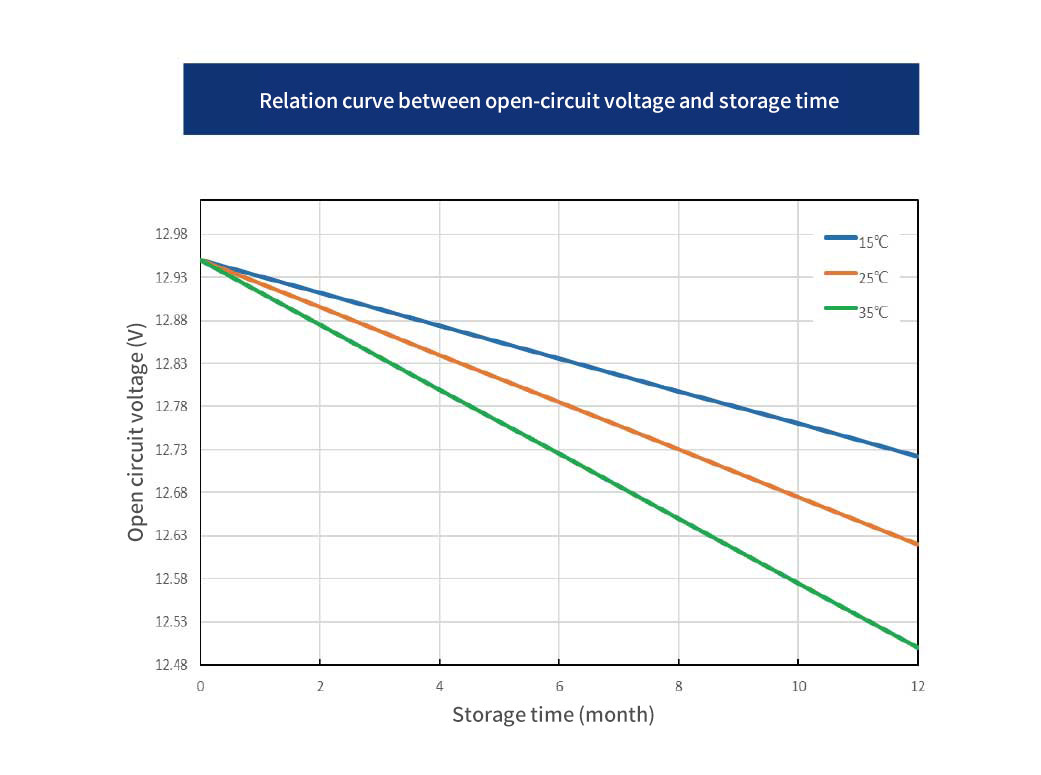

Relation curve between open-circuit voltage and storage time
