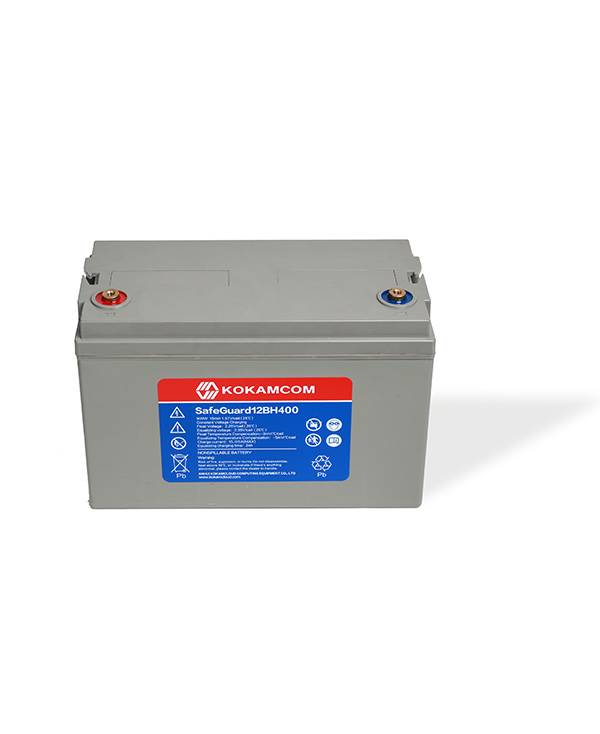

SafeGuard12BH400
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

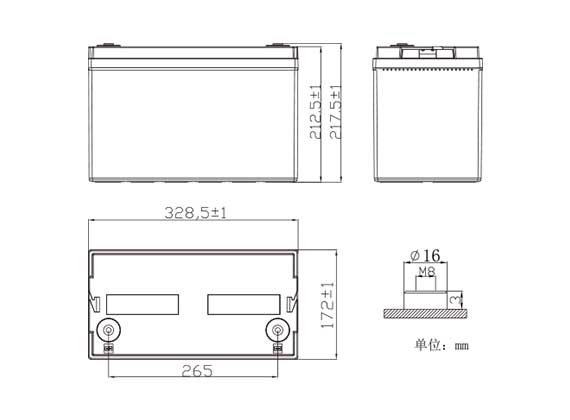

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 498 | 400 | 321 | 275 | 245 | 181 | 141 | 103 | 81 |
| 1.70Vpc | 490 | 390 | 317 | 272 | 243 | 179 | 140 | 102 | 80 |
| 1.75Vpc | 461 | 380 | 309 | 269 | 240 | 176 | 139 | 101 | 79 |
| 1.80Vpc | 441 | 365 | 299 | 256 | 227 | 170 | 134 | 98 | 78 |
