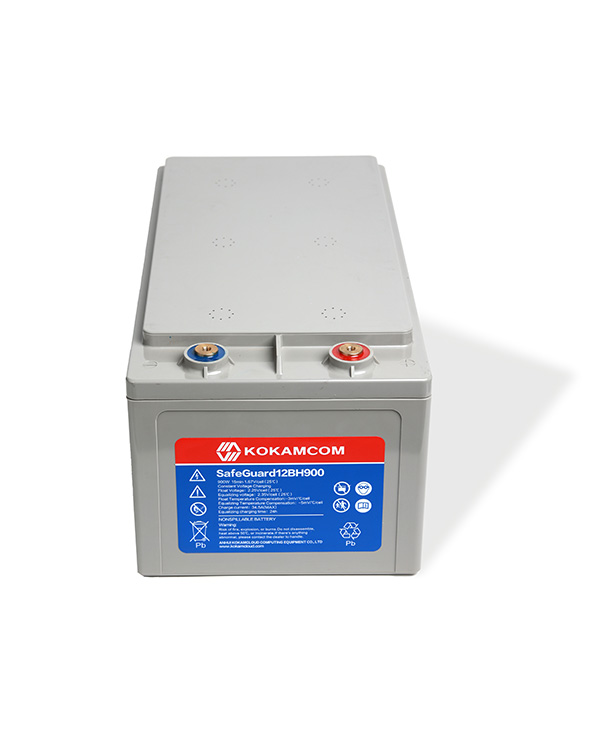

SafeGuard12BH900
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

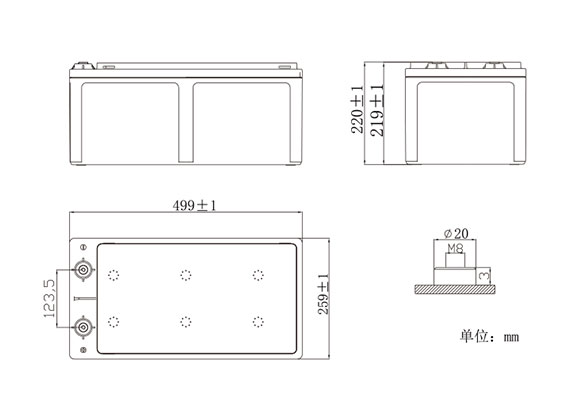

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 1110 | 900 | 722 | 618 | 552 | 408 | 317 | 232 | 182 |
| 1.70Vpc | 1080 | 870 | 714 | 612 | 546 | 402 | 314 | 230 | 181 |
| 1.75Vpc | 1010 | 845 | 696 | 606 | 540 | 396 | 312 | 228 | 180 |
| 1.80Vpc | 945 | 780 | 672 | 576 | 510 | 382 | 302 | 221 | 175 |
