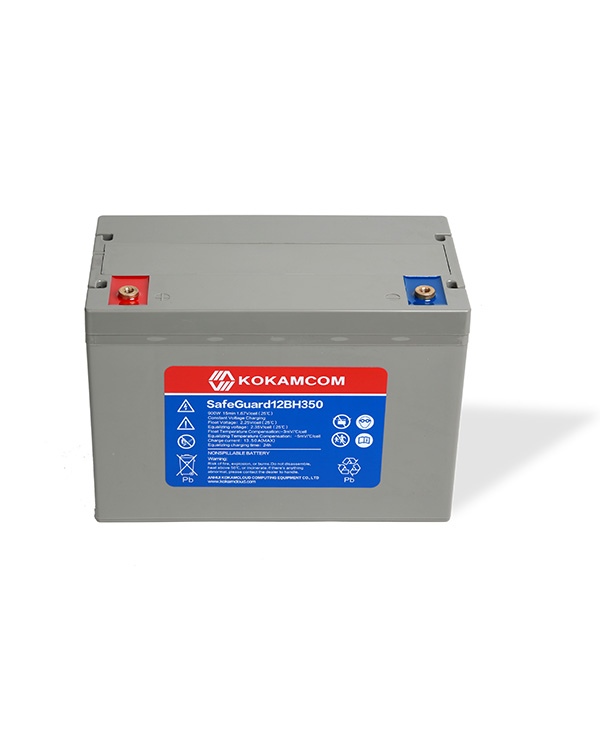

SafeGuard12BH350
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

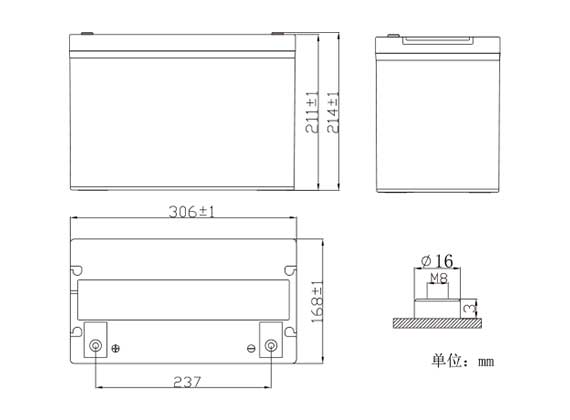

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 435 | 350 | 281 | 240 | 215 | 159 | 123 | 90 | 71 |
| 1.70Vpc | 425 | 343 | 278 | 238 | 212 | 156 | 122 | 90 | 70 |
| 1.75Vpc | 404 | 332 | 271 | 236 | 210 | 154 | 121 | 89 | 69 |
| 1.80Vpc | 385 | 320 | 261 | 224 | 198 | 148 | 118 | 86 | 68 |
