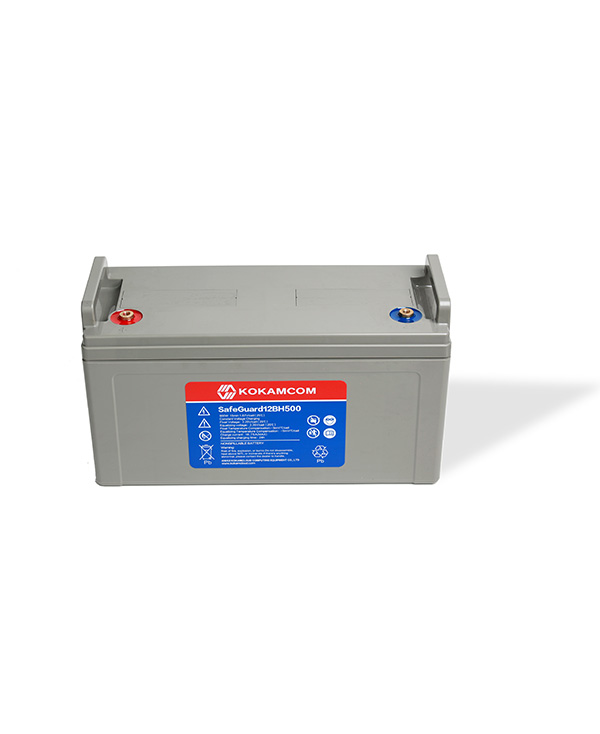

SafeGuard12BH500
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

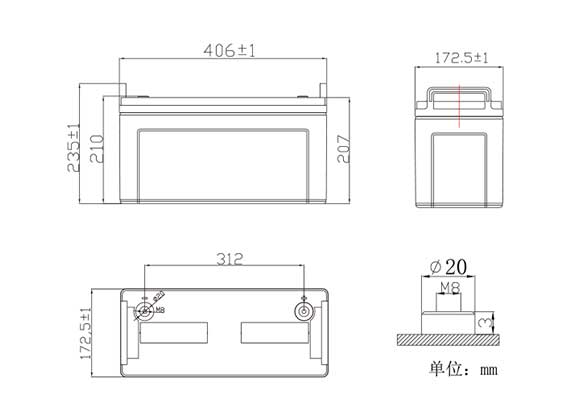

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 622 | 500 | 409 | 343 | 307 | 227 | 176 | 129 | 101 |
| 1.70Vpc | 612 | 490 | 397 | 340 | 303 | 223 | 175 | 128 | 100 |
| 1.75Vpc | 577 | 475 | 387 | 337 | 300 | 220 | 173 | 127 | 99 |
| 1.80Vpc | 551 | 458 | 373 | 320 | 283 | 212 | 168 | 123 | 97 |
