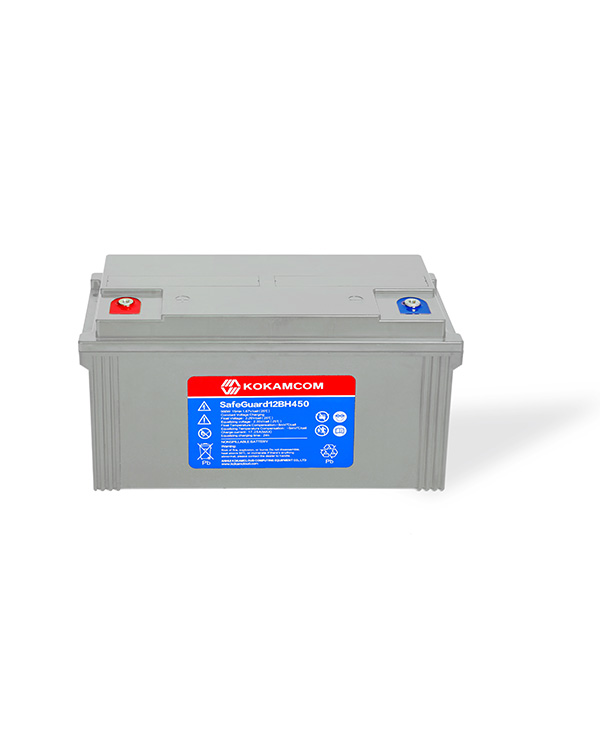

SafeGuard12BH450
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

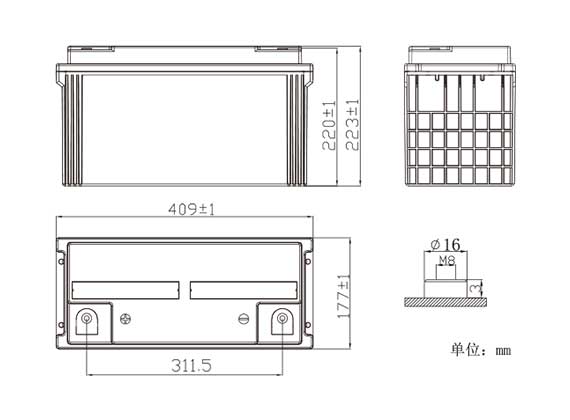

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 560 | 450 | 361 | 309 | 276 | 204 | 158 | 116 | 91 |
| 1.70Vpc | 551 | 441 | 357 | 306 | 273 | 201 | 157 | 115 | 90 |
| 1.75Vpc | 519 | 426 | 348 | 303 | 270 | 198 | 156 | 114 | 89 |
| 1.80Vpc | 496 | 411 | 336 | 288 | 255 | 191 | 151 | 110 | 88 |
