SafeGuard12BH660
Products Features：
Battery design floating charge life of 12 years (25C), ABS tank cover material, AGM valve-controlled sealing technology, flat plate, good high rate discharge performance
Application field：
UPS system, data center, power system, radio and television system

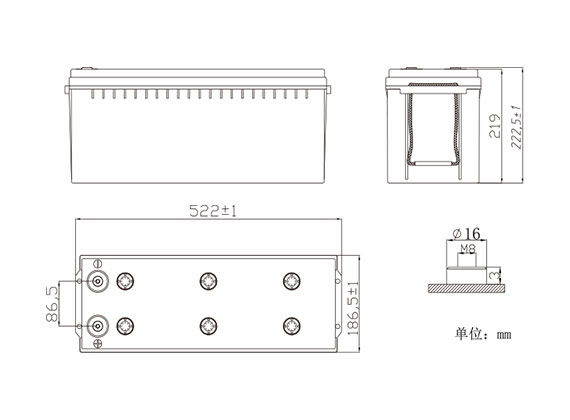

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 821 | 660 | 530 | 453 | 405 | 299 | 232 | 170 | 134 |
| 1.70Vpc | 808 | 641 | 524 | 449 | 400 | 295 | 231 | 169 | 133 |
| 1.75Vpc | 761 | 620 | 510 | 444 | 396 | 290 | 229 | 167 | 132 |
| 1.80Vpc | 727 | 600 | 493 | 422 | 374 | 280 | 222 | 162 | 128 |
