SafeGuard12BH620
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

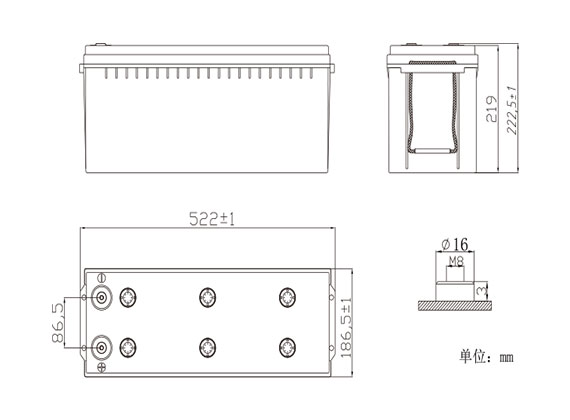

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 771 | 620 | 513 | 420 | 366 | 266 | 210 | 150 | 120 |
| 1.70Vpc | 759 | 611 | 506 | 417 | 363 | 265 | 208 | 149 | 119 |
| 1.75Vpc | 715 | 575 | 490 | 406 | 356 | 264 | 206 | 148 | 118 |
| 1.80Vpc | 683 | 555 | 465 | 386 | 341 | 255 | 205 | 146 | 116 |
