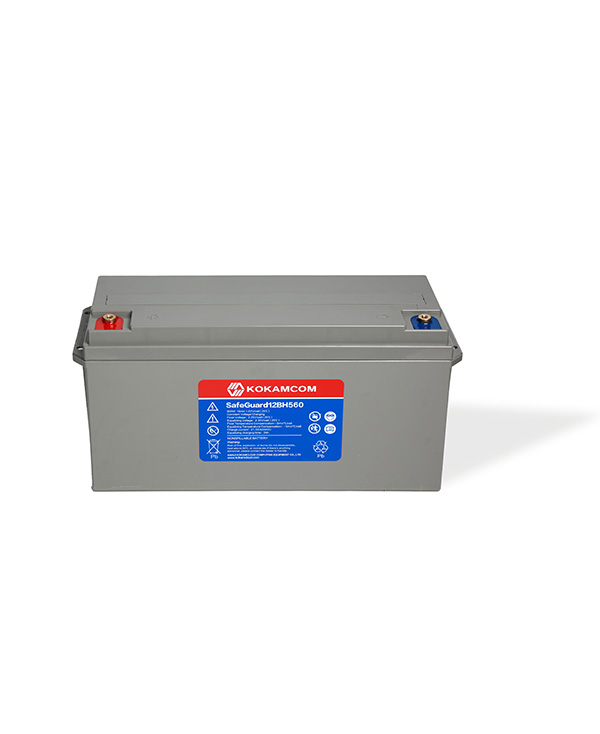

SafeGuard12BH560
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

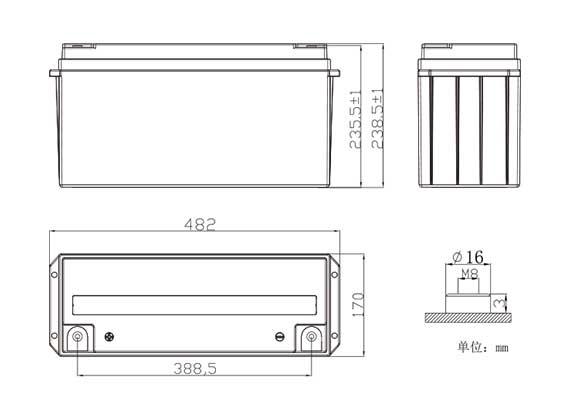

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 694 | 560 | 449 | 385 | 343 | 254 | 197 | 144 | 113 |
| 1.70Vpc | 685 | 550 | 444 | 381 | 340 | 250 | 196 | 143 | 113 |
| 1.75Vpc | 646 | 531 | 433 | 377 | 336 | 246 | 194 | 142 | 112 |
| 1.80Vpc | 617 | 512 | 418 | 358 | 317 | 237 | 188 | 137 | 109 |
