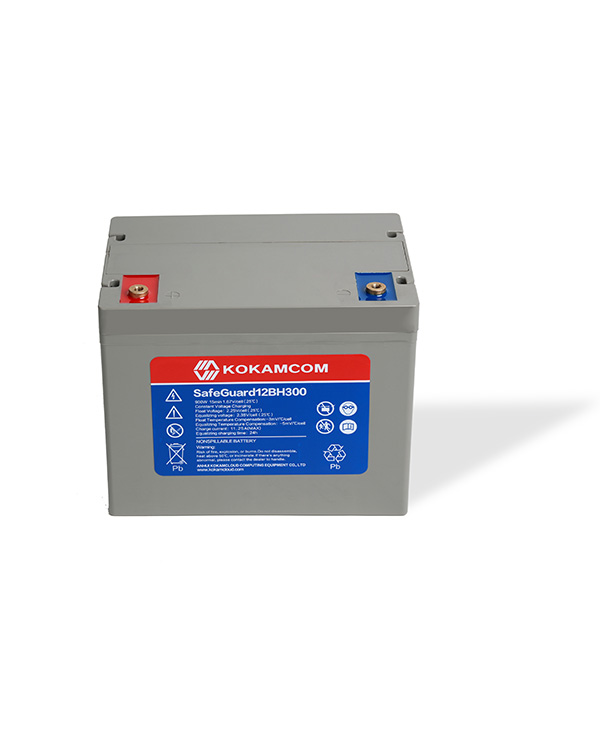

SafeGuard12BH300
Products Features：
Designed floating charge life of the battery is 12 years (25 ℃), V0 class flame-retardant ABS tank cover, corrosion-resistant alloy formula, and excellent high power discharge performance
Application field：
Data center, UPS/EPS uninterruptible power supply system, communication system, automatic control system, consumption and safety early warning system

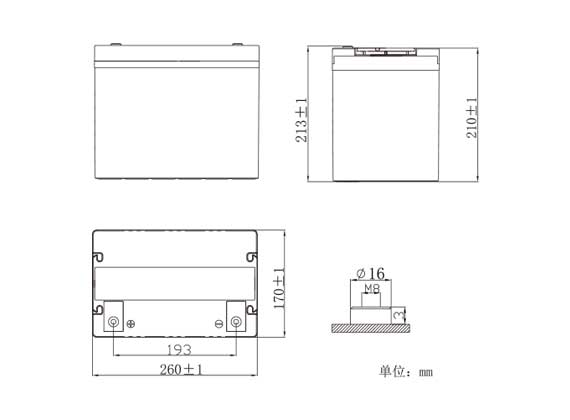

Battery Appearance Dimensions：
Discharge power at different termination voltage, discharge time (Watts/cell, 25°C)
| Termination voltage/single cell | 10min | 15min | 20min | 25min | 30min | 45min | 1h | 1.5h | 2h |
|---|---|---|---|---|---|---|---|---|---|
| 1.67Vpc | 373 | 300 | 241 | 206 | 184 | 136 | 106 | 77 | 61 |
| 1.70Vpc | 367 | 295 | 238 | 204 | 182 | 134 | 105 | 77 | 60 |
| 1.75Vpc | 346 | 285 | 232 | 202 | 180 | 132 | 104 | 76 | 60 |
| 1.80Vpc | 330 | 275 | 224 | 192 | 170 | 127 | 101 | 74 | 58 |
